Product Summary
The TB6560AHQ is a PWM chopper-type sinusoidal micro-step bipolar stepping motor driver IC. The TB6560AHQ supports both 2-phase/1-2-phase/W1-2-phase/2W1-2-phase excitation mode and forward/reverse mode and is capable of low-vibration, high-performance drive of 2-phase bipolar type stepping motors using only a clock signal.
Parametrics
TB6560AHQ absolute maximum ratings: (1)Power supply voltage: 6 V; (2)Output current Peak: 3.5 A/phase; (3)MO drain current: 1 mA; (4)Input voltage: 5.5 V; (5)Power dissipation: 4.2 W; (6)Operating temperature: -30 to 85 ℃; (7)Storage temperature: -55 to 150 ℃.
Features
TB6560AHQ features: (1)Single-chip bipolar sinusoidal micro-step stepping motor driver; (2)Uses high withstand voltage BiCD process: Ron (upper. lower) = 0.6Ω(typ.); (3)Forward and reverse rotation control available; (4)Selectable phase drive (2, 1-2, W1-2, and 2W1-2); (5)High output withstand voltage: VCEO = 40 V; (6)High output current: IOUT = HQ: 3.5 A (peak), FG: 2.5 A (peak); (7)Packages: HZIP25-P-1.27/HQFP64-P-1010-0.50; (8)Built-in input pull-down resistor: 100 kΩ(typ.); (9)Output monitor pin equipped: MO current (IMO (max) = 1mA); (10)Equipped with reset and enable pins; (11)Built-in overheat protection circuit.

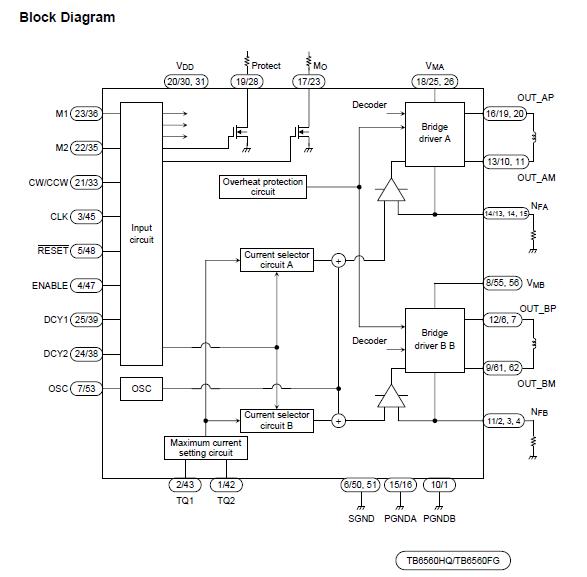

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TB6560AHQ |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TB6560AHQ(O) |
Toshiba |
Motor / Motion / Ignition Controllers & Drivers Stepping Motor Drivr |
Data Sheet |
|
|
||||||||||||
|
TB6560AHQ(O,8) |
Toshiba |
Motor / Motion / Ignition Controllers & Drivers PWM Choppertype 40V 3.5A 100kOhm |
Data Sheet |
|
|
||||||||||||
