Product Summary

The LMH1251 is a wideband 2:1 analog video switch with an integrated YPBPR to RGB decoder. The device accepts one set of YPBPR inputs and one set of RGB/HSYNC/VSYNC inputs. Based on the input selected, the output will be either a decoded TV or buffered PC video signal.

Parametrics

Absolute maximum ratings: (1)Susceptibility: 4.0 kV; (2)Machine Model: 400V; (3)Supply Voltage VCC, Pins 7 and 17: 5.5V; (4)Voltage at any Input Pin (VIN) VCC: -0.5 ≥ VIN ≥ 0V; (5)Video Inputs (pk-pk): 0.0V ≤ VIN ≤ 1.2V; (6)Thermal Resistance to Ambient (θJA): 110℃/W; (7)Thermal Resistance to Case (θJC): 25℃/W; (8)Junction Temperature (TJ): +150℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering 10 sec.): 265℃.

Features

Features: (1)YPBPR to RGB decoding; (2)YPBPR path: 70 MHz, .3 dB, 700 mVPP bandwidth; (3)RGB path: 400 MHz, .3 dB, 700 mVPP bandwidth; (4)Supports PC video display resolutions up to UXGA (1600 x 1200 @ 75 Hz); (5)Supports 480i, 480p, 576i, 576p, 720p, 1080i, and 1080p; (6)Smart video format detection for SD and HD; (7)Power save mode.

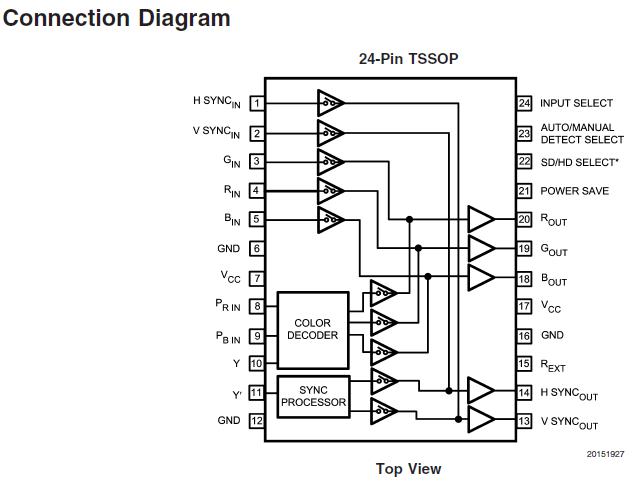

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LMH1251
LMH1251

Other


Data Sheet

Negotiable
LMH1251EVAL
LMH1251EVAL

National Semiconductor

BOARD EVALUATION LMH1251

Data Sheet

1-1: $115.20
LMH1251EVAL/NOPB
LMH1251EVAL/NOPB

National Semiconductor (TI)

Video IC Development Tools LMH1251 EVAL BOARD

Data Sheet

0-1: $112.18
LMH1251MT/NOPB
LMH1251MT/NOPB

National Semiconductor (TI)

Video ICs

Data Sheet

0-1: $7.05
1-25: $5.78
25-100: $5.21
100-250: $4.79
LMH1251MT
LMH1251MT

National Semiconductor (TI)

Video ICs

Data Sheet

0-122: $5.21
122-305: $4.79
305-549: $4.37
549-1037: $3.80
LMH1251MTX
LMH1251MTX

National Semiconductor (TI)

Video ICs

Data Sheet

0-2500: $3.66
LMH1251MTX/NOPB
LMH1251MTX/NOPB

National Semiconductor (TI)

Video ICs

Data Sheet

0-1854: $3.80
1854-2500: $3.67
